Лизинг на Iveco TRAKER 4x4 RAIL ROAD PALFINGER SCHIENEN TWO WAY

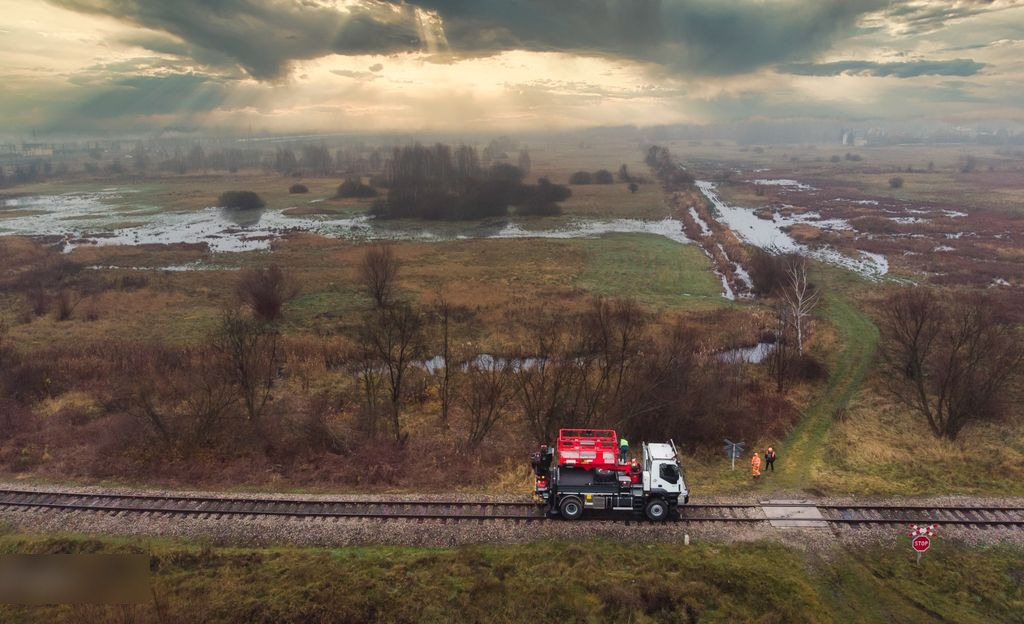

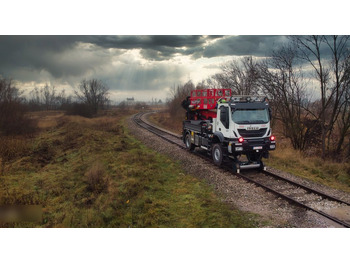

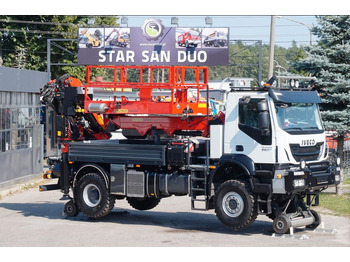

MULTI-PURPOSE ROAD-RAIL VEHICLE (with the function of running on rails) on the IVECO Trakker AD190T36W base chassis with the Palfinger PK16502 B loading crane and the Palfinger PA 095 mobile working platform. The equipment is dedicated to the construction, modernisation and repairs of electric railway traction.

The vehicle is constructed on the chassis of IVECO Trakker AD190T36W with 4x4 drive.

Basic parameters: Axle base 4500 mm 4x4 drive with single off-road tyres Cursor 9 Euro 6 engine, 360 HP Connecting box with the function of the off-road ratio 16-speed manual gearbox Two independent layshafts for accessories Ø 50 mm coupling for towing a tandem trailer Reinforced compressor and alternator Additional equipment: Generator 230V/400V 7 KW Set of additional work lights Measuring device – PANTOGRAPH Platform with a protective roll over the driver's cabin.

The base vehicle is fitted with a specialist adaptive frame which is a bearing element and binds the loading crane, rail chassis and working platform together with the vehicle. The functions of the rail wheel drive and lifting the chassis for running on rails are hydraulic and radio controlled.

Maximum speed of the vehicle on the rail chassis when controlled from the cabin (crane and mobile platform in transport position) – 20 km/h. Track control is possible from the working platform with two remote controls. For safety of use, speed limitation was introduced when controlling the driving on rails with remote controls up to 5 km/h.

The installed Palfinger PA 095 working platform is dedicated to working with railway traction. Basic parameters: Maximum horizontal range 6.2m Maximum height of the floor of the basket from the rail head 5.9 m Maximum rotation 400 degrees Additional electric sockets 230V and pneumatic connections Hydraulically levelled platform Radio control PAL 150 Railway light.

The installed Palfinger PK 16502 B loading crane is dedicated to working with railway traction. Basic parameters: Hoisting capacity 1340 kg per 10.2 m Crane rotation 450 degrees Additional 5/6 function Adapted to work with a basket Radio control PAL 150 Railway light. Diagram of the hoisting capacity of the PALFINGER PK 16502 B crane PALFINGER PA 095 platform operating range.

TWO-WAY VEHICLE CLASSIFIED AS 9A in accordance with PN-EN-15756-1+A1 standard Working platform and loading crane fitted with PAL 150 radio control and connected in a continuous manner communicate with each other.

Thus, it is possible to safely use two devices at the same time with maximum current stability of the vehicle. RAIL CHASSIS PLATFORM PANTOGRAPH OPEN BODY WORKING PLATFORM CRANE Repairs, modernisation of trucks, special vehicles, buses, construction and engineering equipment
