Лизинг на Constmach Screw Sand Washing Machine / Spiral Sand Washing Machine

You can call us 24/7 for spiral sand washing machine for sale.

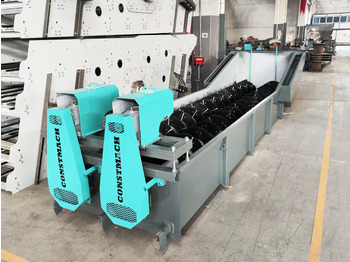

CONSTMACH Screw Washers stand out in the sector with their high capacity and superior performance. It is designed to process all kinds of fine materials in the most efficient way, whether it is sand screening washing or gravel and clay washing. The sand washing machine provides long-lasting use with its heavy steel plate construction and durable body. With its easy maintenance and fast spare parts replacement, it makes it possible to work continuously without causing your business to pause.

It offers superior cleanliness, especially when processing gravel, sand or broken stones containing excessive clay and dirt. The heavy duty gearbox and cast white iron wear shoes with replaceable bolts, designed by Constmach specialists, extend the service life of the machine and reduce maintenance costs.

These machines, which are offered with single or double shaft configurations, offer suitable solutions for every need with various size and capacity options. For example, the CHY 50 model offers a capacity of 25-45 m3/hour with a motor power of 5.5 kW, while the CHY 80 model provides a capacity of 50-90 m3/hour with a motor power of 2 x 11 kW. These models also differ according to the water needs, so they allow you to use your business's water resources in the most efficient way.

Get excellent results in your sand washing and gravel washing operations with CONSTMACH Screw Washers. These machines equipped with quality materials increase the efficiency of your business by providing long-lasting use and high performance. With the assurance of the Constmach brand, superior technology and durability come together Decently. Take your business one step further with these privileged machines.

Technical Characteristics of CHY 50 Spiral Sand Washing Machine

Dimension: φ500×5,000

Motor Power: 5,5 kW

Capacity:

0-3 mm: 25 m3/h

0-7 mm: 45 m3/h

Rotation Speed: 24 rpm

Water Requirement: 25-45 m3/hour

Weight: 2,800 kg

Technical Characteristics of CHY 60 Spiral Sand Washing Machine

Dimension: φ600×6,000

Motor Power: 2 x 7.5 kW

Capacity:

0-3 mm: 40 m3/h

0-7 mm: 75 m3/h

Rotation Speed: 20 rpm

Water Requirement: 35-55 m3/hour

Weight: 5.200kg

Technical Characteristics of CHY 75 Spiral Sand Washing Machine

Dimension: Φ750×7,500

Motor Power: 2 x 7.5 kW

Capacity:

0-3 mm: 45 m3/h

0-7 mm: 80 m3/h

Rotation Speed: 20 rpm

Water Requirement: 40-60 m3/hour

Weight: 5,800kg

Technical Characteristics of CHY 80 Spiral Sand Washing Machine

Dimension: φ800×8,000

Engine Power: 2 x 11 kW

Capacity:

0-3 mm: 50 m3/h

0-7 mm: 90 m3/h

Rotation Speed: 20 rpm

Water Requirement: 45-65 m3/hour

Weight: 6.250kg
