Лизинг на Bano MAC-S H 28-70

Please provide reference number upon request: 20858

See ats.no/en/item/20858 for more images.

Model:

MAC-S H 28–70

Design:

Stationary

Chamber:

Wear plates in Hardox on bottom and side walls

Rotor:

• Single-shaft with 700 mm diameter and 2800 mm length
• 140 reversible knives (Bano Formula) – 60 x 60 x 30 mm
• Variable speed: 140–200 RPM (VFD-controlled)
• Automatic rotation control with alarm system
• Reinforced with 600 HB wear protection
• Self-cleaning bearing system with double roller and thrust bearings

Cutting Technology:

• Precise, progressive cutting for high efficiency
• 1 row of fixed, adjustable and reversible counter knives
• Quick access to cutting chamber via hydraulic rear door

Feeding System:

• Hydraulic pusher for smooth and controlled material flow
• Fully adjustable via user-friendly touchscreen

Discharge System:

• Replaceable screens (Hardox Ø 50 mm)
• Easy front access with hydraulic support for fast replacement

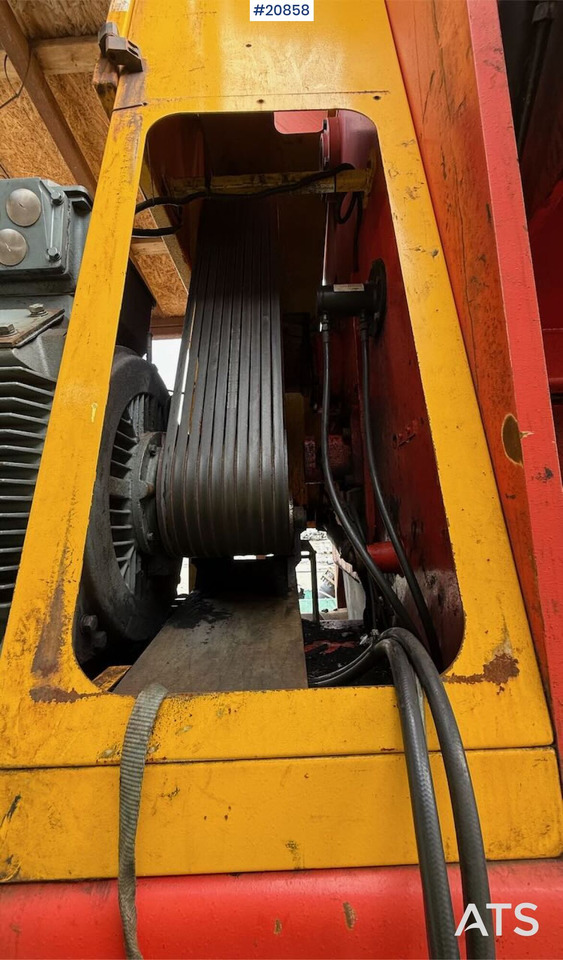

Drive System:

• Mechanical transmission with belts and pulleys
• Electric motor: 315 kW (main) + 7.5 kW (auxiliary)
• 400V – 50Hz
• CE-approved control panel with:
• PLC
• Touchscreen
• Customizable software
• Internet module for remote support
• Remote control included

Weight:

Approx. 26,000 kg

Description:

The MAC-S H 28–70 is a stationary industrial shredder, well suited for metal recycling and waste processing.

Manufactured in 2021 and first commissioned in May 2022.

It has run 3,328 hours, primarily used for shredding pipes.

Electric cabinet is included.

Available for delivery on short notice.

Own weight: 26000

Model: MAC-S H 28-70
