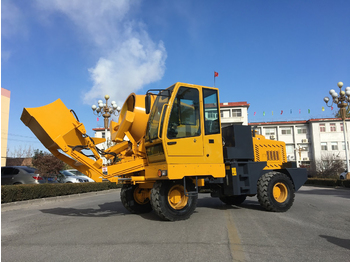

Нов Камион миксер за бетон QINGDAO PROMISING 1.6 CBM Small Concrete Mixer Truck

1.6CBM Small Concrete Mixer Truck

Application:

Concrete mixer trucks, or transit mixers, are used to mix and transport ready-mix concrete from the batch plant to the job site. Wherever concrete is produced and moved, concrete mixer loaders are employed. Our self-loading mixer is rough terrain machine which can be operated by one person. The automatic feeding mixer truck comes with electronic weight batching and has a typical concrete output of 6 CBM/hour.

Features:

60kW (81.6HP) 4-cylinder Diesel Engine

Articulated Design realizes smaller turning radius, compact size is more applicable in rural or narrow working sites.

25km/h Driving Speed may fulfill running for a long distance

Enlarged Water Tank facilitates water refilling and flushing the drum.

South Korea Imported and Custom-Designed Key Hydraulic Components improve the softness and stability of the truck, which are more compatible with this model.

Complete Dashboard and Instruments in Cabin enables easy operation of all the tasks such as self-loading, self-unloading, mixing, discharging, and water addition.

4.75mm thick Manganese Plate Drum Body makes it have better wear resistance and longer service life.

The Waterproof Wiring Harness and LED Lamps are used in the whole truck.

French Total Hydraulic Oil is used to ensure the purity of hydraulic oil in the truck and prolong its service life.

Special-shaped Seamless Steel Pipe Riveted and Welded Frame makes it a reasonable design and the truck higher stability.

1.6m3 Concrete Output Drum

Four-Wheel Drive

Widened Construction Tires offer a higher load-bearing capacity.

Technical Specifications:

1. Geometric Volume of Mixing Drum: 2.2CBM

2. Actual Mixing Volume of Mixing Drum: 1.6CBM

3. Residual Volume of Mixing Drum: Less than 0.8%

4. Mixing Drum Concrete Output: 6 CBM/hour, up to 4 batches per hour

5. Mixing Drum Mixing Speed: 3 gears both Forward & Reverse Rotation

6. Engine: 60 kW (81.6HP)/2400rpm Four-cylinder, Inline, Water-cooled, Four-stroke YUNNEI YN38GB Diesel Engine

7. Drive System Hydraulic Component: Imported from South Korea

8. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

9. Low Speed: 0-9.5 km/h

10. High Speed: 0-25 km/h

11. Drive Mode: 4-wheel Drive

12. Wheel Base: 2500 mm

13. Gradeability: 30 degree

14. Hydraulic System: Two Variable Stroke Pumps-Driving Vehicle and Mixer Separately, Two Constant Rate Pumps-Providing power to Drum, Brake and Water System

15. Cabin: Luxury Cabin

16. Bucket Capacity: 0.35 CBM with Hydraulic Controlled Gate

17. Chute: Hydraulically Controlled Adjustable Chute with 15 degree vertical movement and free horizontal movement

18. Brake: Wet Brake, Parking Brake with Gearbox

19. Tire: 20.5/70-16-14PR Construction Tire

20. Steering: Hydraulic Rear Wheel Steering

21. Battery: 2x 12V/120Ah Battery for Lighting & Ignition

22. Concrete Discharging Angle: 60 degree

23. Fuel Tank Capacity: 180 L

24. Water Tank Capacity: 430 L

25. Operating Weight: 5500 kg

26. Overall Dimension (L x W x H): 6050 x 2200 x 2900mm (3434mm)

Standard Configuration:

4-wheel drive, 2-wheel steering, hydraulic torque converter transmission, dual screen backup camera (reversing camera), warning light, reversing alarm, radio, electric fan, hand brake, wearing parts, tool box.

Optional Parts and Functions:

Slewing Drum with 270 degree Discharge, Electronic Weighing System, Tilting Drum, Air Conditioning, Steel Wire Construction Tire, Other Optional Engines

Container Loading:

One 40-foot HQ container can fit two units

Note:

1. The technical specifications are for standard models only.

2. Other optional accessories and requirements are available upon request.

3. All photos are for reference only. Machines shown may include optional parts.

4. All specifications and design characteristics are subject to change without prior notice.

Optional:

270 degree Drum Slewing

Air Conditioning

Centralized Lubricating System

Dual Screen Backup (Reversing) Camera
